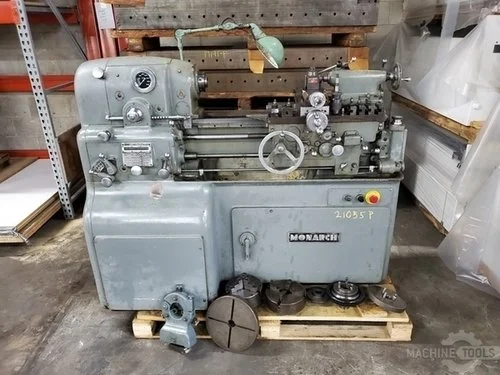

MONARCH 10EE

Have one to sell?
(248) 229-8296
tim@machinerymanager.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
Engine Lathes
Manufacturer:
MONARCH
Model:
10EE
Condition:
Fair
Year:
1962
Stock #:
210052
Status:
For Sale

Description

Overall Machine is in Fair/Good condition, Tube Type Electrical controls Once Powered Up ,Tubes are warmed up (3-4 min) Machine operation is fine. Once running machines sounds fine basic operation is Ok.

Swing12.5"317.5 mm
Centers30"762 mm
Spindle Bore1.4063"35.72 mm
Power7.5 hp5.6 kW
RPM4,000 RPM4,000 RPM
Swing Over Cross Slide7.25"184.15 mm
Dimensions30 x 75 x 6030 x 75 x 60
Weight4000 lbs4000 lbs

Swing 12.5"
Centers 30"
Spindle Bore 1.4063"
Power 7.5 hp
RPM 4,000 RPM
Swing Over Cross Slide 7.25"
Dimensions 30 x 75 x 60
Weight 4000 lbs

7" 3-Jaw Chuck * 8" 4 Jaw Chuck* 11" Face Plate*3" Steady rest*Aloris Tool Post w/7 assorted Holders*Live Center*Keyless Drill Chuck*work Light. Spare tubes available, Machine taken from R & D shop
