PROMAC ZEPHYR VTR
Have one to sell?
ConditionUsed
1 available

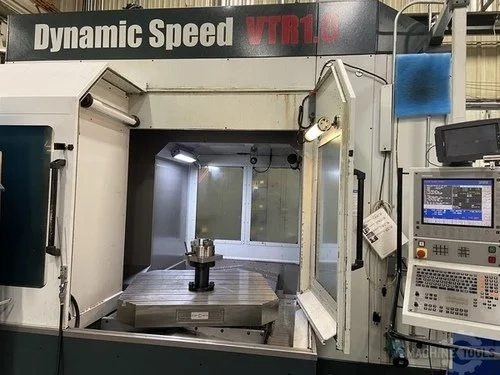

Promac Zephyr VTR 1.0 5-Axis CNC Vertical Mill, Heidenhain TNC530, 20K Spindle, 72"/39"/39" Travel, 32 ATC, Scales, B-Axis Head, Hi-P CTS, New Spindle (2017), HSK63, 2009
# Axis 5
Type of CNC Control Heidenhain TNC 530
Table Working Surface 39" x 39"
Max Table Load 5500 pounds
X 72 inches
Y 39.35 inches
Z 39.37 inches
C-Axis Table Rotation Positioning Degrees 0.001
Rapid Traverse X/Y/Z (IPM) 1575
Power 40 horsepower
Table Surface To Spindle Nose 44.57
RPM 20000
# ATC 32
Taper HSK 63
Max Tool Length In Carousol 9.84"
Max Rotatable Part Size 55" Corner to Corner
New Spindle in 2017
Hi Pressure Coolant Thru Spindle
Conveyor
Scales
Heidenhain Probe and Tool Length Measurement
B Axis Head
New Spindle in 2017
Hi Pressure Coolant Thru Spindle
Conveyor
Scales
Heidenhain Probe and Tool Length Measurement
B Axis Head
