KNUTH KSR 40 ADVANCE
Have one to sell?
ConditionUsed
1 available

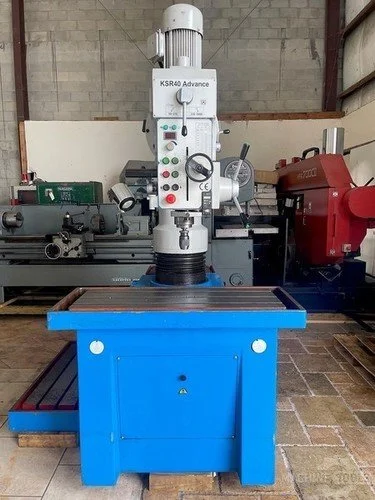

KNUTH KSR 40 ADVANCE RADIAL DRILL MACHINE TAPPING 2007’ #GMT-2771
Drilling capacity: 1.57"
Tapping capacity: M30 (steel)
Throat: 37"
Spindle nose to table surface: 31"
Column stroke: 15"
Quill stroke: 8"
Head swivel range: +/- 90°
Column diameter: 9"
Table set up area: 47” x 20”
Number of T slots: (3)
Upper beam travel: 23"
Spindle taper : #4 Morse Taper
Spindle speeds: 50 – 2,000 R.P.M. Infinitely variable
Feeds: (6) 0- 0.02 In/R
Approximate weight: 6100 Lbs.
Approximate dimensions: 68” x 48” x 89” H
Digital speed indicator
Additional setup areas at side and rear
16” x 24” Swiveling horizontal table
47” x 20” side table
Digital boring depth indicator
Work lamp
Coolant system
Tapping unit
Main spindle motor 3 H.P.
Column motor 2 H.P.
Coolant motor ½ H.P.
Machine is currently wired for 460 volt / 3 phase / 60 H.Z.
