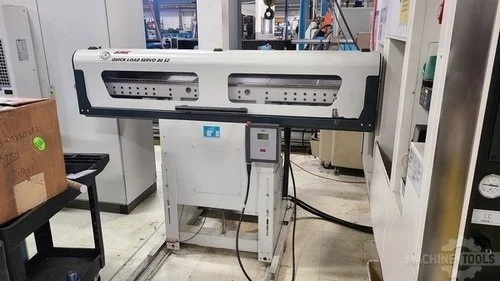

LNS QUICK LOAD SERVO 80 S2
ConditionUsed
1 available
The Quick Load Servo 80 S2 is designed for automatic loading of spindle length
bars up to 63” and 3-1/8” in diameter without exceeding the spindle length.
Using the proven concept of the Quick Load Servo 80, the Quick Load Servo
80 S2 is fully electric and does not require shop air. It is equipped with an
automatic diameter changing system with linear motors and LNS servo motor
technology. Centerline and bar loading fingers adjust automatically as the new
bar diameter is entered in the prompting remote HMI. No manual adjustment is
required reducing changeover time to a minimum.
Weight 820 lbs 370 kg
Retraction travel (X and Z axis) 23.6 in 600 mm
Minimum diameter (round) 0.236 in 6 mm
Maximum diameter (round) 3.15 in 80 mm
Minimum bar stock length 14 in 350 mm
Maximum bar stock length (Not to exceed spindle length) 63 in 1600 mm
Maximum weight bar stock 150 lbs 67 kg
Maximum allowed weight on the loading table 1100 lbs 500 kg
Main electrical power (Volt) 200 – 480
50 Hz – 60 Hz
Maximum current rate (Amps) 1 A
Pushing force/torque 125 ft-lb 167 Nm
Maximum feed rate >330 ft/min >100 m/min
Loading cycle for bar stock 8 – 12 sec.
Loading cycle for shaft loading 4 – 7 sec.
