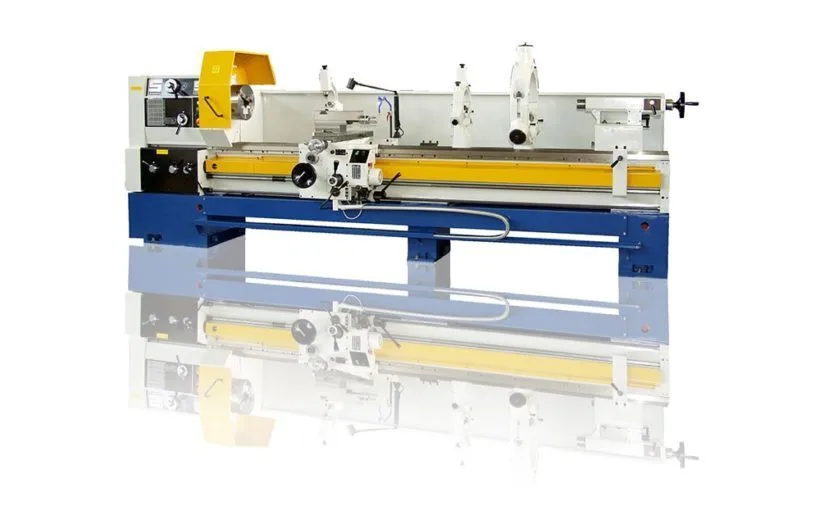

New Summit 20-4 x 40 Precision Engine Lathe

Address: 199 Pierce St, 205, Birmingham, 48009, US
Telephone: +1-248-686-1520

Have one to sell?

ConditionNew

Quantity

New

Have one to sell?

Overview

Type:

Metal Lathe

Manufacturer:

Model:

20″

Condition:

Build To Order

Status:

For Sale

ImperialMetric

Swing over bed	20.25 in
Swing over cross slide	11.875 in
Workpiece Weights At the headstock	400 lb
Workpiece Weights Between chuck and tailstock	2000 lb
Between Between chuck and tailstock w/steady rest	4000 lb
Spindle speeds (no.) range RPM	(15) 11.5-1400	(15) 11.5-1400
Hole through spindle	418 in
Spindle nose	D1-8 Camlock	D1-8 Camlock
Headstock Center	#6 MT	#6 MT
Threads per inch (no.) range	(64) ¼ - 60	(64) ¼ - 60
Metric threads (no.) range	(64) .5 - 120	(64) .5 - 120
Module threads (no.) range	(64) .125 - 30	(64) .125 - 30
Diametral Pitch (no.) range	(64) 1 - 240	(64) 1 - 240
Longitudinal feeds (no.) range	(124) .00145-.44474	(124) .00145-.44474
Cross feeds (no.) range	(56) .0007-.22237	(56) .0007-.22237
Leadscrew (Dia) range	(2”) 2 TPI	(2”) 2 TPI
Feed rod diameter	1 in
Cross Slide Travel	12.5 in
Compound rest travel	5.375 in
Graduation of apron handwheel	0.0	0.0
Graduation of cross slide handwheel	.002 (Dir read)	.002 (Dir read)
Travel of spindle barrel	9.5 in
Diameter of spindle barrel	3.5 in
Taper of center	#5 MT	#5 MT
Two Speed	1:1, 4:1	1:1, 4:1
Width of bed	15.75 in
Depth of bed	16.875 in
Hardness of bed (Rockwell C)	42-48	42-48
Degrees of taper	+/- 10 Degrees	+/- 10 Degrees
Maximum turning length per setting	15.75 in
Main Drive	10 hp
Coolant pump	0.25 hp
Standard Steady Rest	1/2”-6 1/8”	1/2”-6 1/8”
Extra Capacity Steady Rest	5” – 11”	5” – 11”
Follow rest	1/2”- 7 7/8”	1/2”- 7 7/8”
Shipping Width	48 in
Shipping Height	60 in
Shipping Length	114 in
Shipping Weight	6800 lb
